Microsoft regularly makes available critical Windows XP and Windows 2000 security patches (or hotfixes as they are also called) which ensure that your operating system keeps up to date. These patches/hotfixes are obtained in a variety of ways such as visiting the Windows Update or Microsoft Update website (accessible from your START button), through the Automatic Update service which runs in the background on your PC and weekly checks for recently issued updates/patches/hotfixes or by System Administrators downloading and applying patches and hotfixes to your PC.

Regardless of how the patch/hotfix is obtained one thing you should be aware of: All of the files that will be replaced are backed up on your hard drive just in case the update goes bad and you need to return your PC to its prior state. These older files that are replaced are stored in hidden folders in your Windows system folder.
Over time these backup folders accumulate and can occupy a significant amount of disk space.

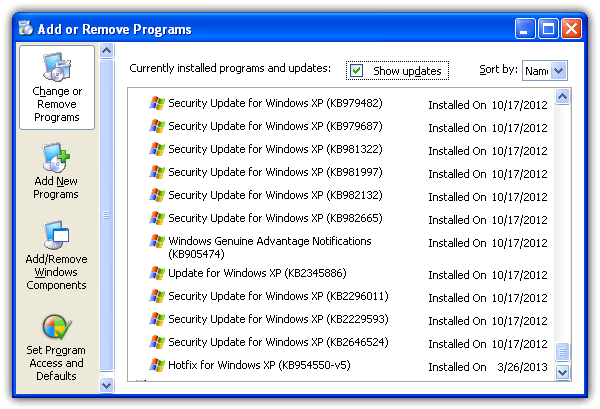

For example my Windows XP PC with service pack 3 and all latest hotfixes installed created thousands of files and could easily takes up 600+ megabytes of my hard disk space. Are these backed up files useful to retain, or can they be deleted and disk space freed up? Ever since I started using Windows XP, I never had any problems after installing Windows Update patches/hotfixes. Instead of immediately cleaning up the old backed up files, it’d be better to monitor your PC for a few days to see if everything is working properly, and that nothing “broke” during the update. Sometimes an update can go awry for a multitude of reasons, and if so, you can uninstall the recent patch/hotfix through the “Settings > Control Panel” where you will find an Add/Remove Programs applet (tool). All of the updates will be listed there by date.
However, if days and weeks pass and your computer is running perfectly, then there is no need to keep those backed up old files on your hard drive. But since these files are stored in hidden folders, it may not be obvious to the average user how to delete the folders and files.
Here are two tools that you can use to EASILY delete backup files that were created when installing a Windows hotfix or service pack update.
1. Windows XP Update Remover

Windows XP Update Remover is a freeware lets you easily remove the $NtUninstall backup folders and associated uninstall information from your computer to save disk space. It can also be used to uninstall Windows updates. Removing the backup folders makes it impossible to uninstall the Windows updates. However, it’s unusual to have to uninstall an update unless it causes problems, and that will usually become apparent soon after receiving the update. So you can safely remove the backup folders for updates that are more than a few weeks old, and recover the lost disk space.
[ Download Windows XP Update Remover ]
2. Windows Update Cleanup Utility

Update Cleanup is a shareware that cost $4.95 and allows you to use the tool for 60 days without limitations. It is able to safely remove the backup files that were created when installing a Windows hotfix or service pack update. Removing the old backup files with Update Cleanup will free up hard disk space. This utility will also remove the associated Registry entries for these items — entries that visibly show up as unnecessary program entries in the Add/Remove Programs panel.
[ Download Update Cleanup ]
Windows Update Cleanup Utility is a more advanced tool to delete old backup files created from windows updates if compared with the free Windows XP Update Remover. You can easily delete all by selecting all the entries and click delete. It also shows the disk space used by the backed up files and allows you to delete the files to recycle bin instead of permanently deleting it from your computer.
For advance computer users, manually deleting the hidden $NtUninstallKBXXXXXX$ folders from Windows folder will work too but it is not complete. On my Windows XP computer, there were a total of 43 $NtUninstallKBXXXXXX$ folders in Windows directory but in Update Cleanup, it shows a total of 50 entries. The remaining 7 entries of backed up windows files are located in Windows\ie7updates\ folder.
Related posts:
Dear Raymond, Thank you SO much for this great article and the tools to get rid of those unwanted files. Gosh, every time I turn off my computer, it starts trying to update itself, but there are some old update files that are apparently no longer supported by Windows, and they can hang my computer up all night long and prevent it from shutting down because it keeps trying to get beyond those files. I was in utter despair about this, not knowing what to do to resolve it, so at least now I have something I hope will help take care of this. I am always having to shut down my system by just pressing the off button, and I know that causes more problems. I do check and try to clean up the registry and do have programs to do that, but overall, those old unsupported files were still there.
Thank you very kindly for helping all of us who have these problems.
For Windows XP, the catroot folder can be deleted, just make sure to stop the cryptographic services and remove catroot2 as well, they will be recreated when you run updates.
Cleanup seems to work fine on my Win2K, but I notice there’s a corresponding KBnnnnnn.cat file in c:\WINNT\system32\catroot\{bighexnumber}. What’s up with that? Can it be deleted? Should it stay? It’s about 8k.
I have Windows XP x64. The tools installs but reports that it is for Windows XP only. Any chance there is a x64 version?
thanks you for your information….
Thanks very much for this – I deleted 270 old update file backups and gained nearly 1 Gb. I still have a couple of folders with very long hex number names that I’m not allowed to delete – any ideas how to get rid of them?
I am scared to use it, I did down load this and i have 250 in one and 250 in the other one. So I can remove all the K’s and all the $NT’s? What about Windows XP Update remover is that one safe as well? I counldn’t find Previous winds installations?
Removed almost 300 “update folders” and gained just about 100MB, what a waste!
600+ MB? More like 1 GB+. Lifesaver. I was spending a full gig on these backups on a 40 gig HD. These things really add up if your machine is old enough and you have enough MS products on it (i.e. Office, some of the SDK’s, etc)
I just installed Windows XP Update Remover and got “File iscorrupt” and couldn’t continue with the install. Help. I need to clean out my computer.
Thanks for the tips Ray – can you do one on how to save the updates to a cd\dvd so if you want to later reinstallxp/vista you do not have to go through the whole schlep of connecting to MS, downloading & re-installing the updates. Look forward to your reply.
Thanks,
Theo
SA
Interesting tool, I checked it but I didnt went to the end because well I lack some pro usability and to not accidently erase a necessary one. I am using tune up utilities and indeed my first run on pc file cleaning I managed to clean 10go WOW!!! I hope those mentioned files were in the cleaned ones????
It is my first time to comment on a website.
I would just like you to know that I visit your site everyday for new postings and I would just want to share what happened to me to make an awareness for others.
I tried this Windows Update Cleanup Utility and Duplicate File Finder. After using these two, my disk space was free of just a little space and when I turn it on, the screen flashed a comment that system32/DRIVERS/pci.sys was corrupt or missing. It make me panic and tomorrow after my pc was reformatted.
I don\’t intend to make a bad reputation about you Sir Raymond, it\’s just that I still admire what you are doing. I even used some of your postings here. Maybe I made a wrong pushing up of buttons that\’s why it happened. I don\’t know either.
And there is one thing I would like to know from the first I handled a computer and it is how to reformat one. That would be a great help to all of us. If ever you posted it already, I can\’t find it.
That\’s all. Thank you so much. Hope you continue it. This is the first-time ever comment so it\’s too long. :D Thanks again.
Hi!
Sorry if i’m mistaken with the thread). I need some good app for disk space reporting. Looking for a week already and cant find(. Maybe some of you know?
Thanks
Thank you Raymond
Same her usin CrapCleaner (ccleaner) for it.

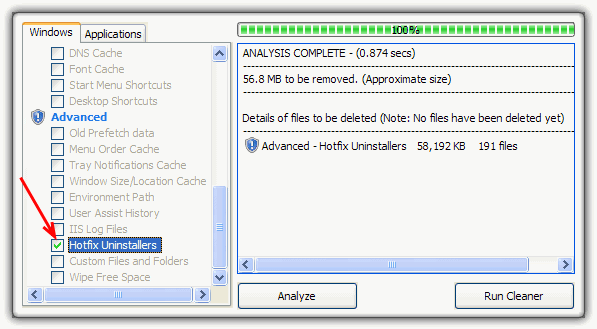

You can also use CCleaner: there’s a ‘Hotfix Uninstallers’ option in the ‘Advanced’ section of ‘Cleaner’ tab…
This article was very useful.
Thanks a lot.
thanks :)
you indeed the best malaysian blogger :)
Thanks Raymond, you made me save ~400 MB today :))
CONFIRMED NOT WORKING ON VISTA

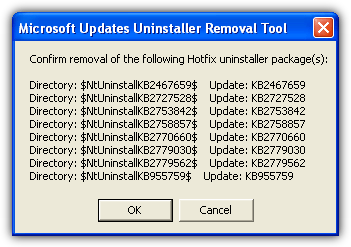

a.vouillon.free.fr/ftp/SuppUnInstall.vbs
Thanks for you
thanxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Thanks Ray. I love your blog and all the things that you offer.
I’ve got a question about the Windows XP Update Remover. There are tons of things listed in there, and I can only select one at a time. Is there a way to select all of them at once and then get rid of them.
If I went into my C:/Windows folder and highlighted and deleted all the folders titled $NtUninstall (excluding service packs), would that be any different than using Windows XP Update Remover?
Are these tools compatible for Vista Users?
After repairing an xp installation, what happens to all the updates?
thanx
quick question would you recommend Windows Update Cleanup Utility above ccleaner
this has been great, from the Doug Knox website also
dougknox.com/xp/utils/xp_hotfix_backup.htm
I’ve been manually removing them after i’ve just done a Windows Update. But this tool makes it easier now i guess :D,
Cheers Raymond
Thnx Rymond 4 these tools
HI, Bonjour/Buongiorno
Why every time, I do not ever manage to have a correct key? Why here or somewhere else I fall every time on an occasion which works, or on a procedure completely no? I do not ever have luck???
Luciano from Paris
thanks ray nice tools!
is this also can use in vista?
